If you have a cold bathroom or toilet you can do something about it. By installing a bathroom heater combination unit you can feel instant heat with the flick of a switch. We stock a range of bathroom combinations units including IXL and HPM.
Heaters We Provide
Combination units are available with either 2 or 4 heat lamps and include a light and exhaust fan. 2 heat lamp models are also available without an exhaust fan.
Below is range of bathroom heaters we currently stock, however to see the full range available from the manufacturers please click on the following links:
If you have purchased your own bathroom heater and wish us to install it, we are happy to install it for you on a time and materials basis.
Bathroom Heater Enquiry/Order Form
There is no need to accept a cold bathroom or toilet, give our experts a call on (08) 8274 0100 to see how we can warm up you and your family, or fill in the below order/enquiry form and our coordinators will give you a call.
IXL 11323 Tastic Vivid
- 2 x 275W instant heat infra-red heat lamps.
- Powerful 310m3/h Airflow 200mm exhaust fan.
- Superior Illumination 10W LED Tri-Colour.
- Maximum ceiling height: 2.4 Mtrs.
- Cut Out Size (mm): Template supplied.
- Total ceiling cavity required: 305mm.
- Wall switch included.
- 5 year in home manufacturers warranty.
- 2 year manufacturers warranty on heat lamps.
- Made in Australia.
IXL 11344 Eco Vivid
- 2 x 275W instant heat infra-red heat lamps.
- Powerful 200mm exhaust fan.
- Includes Back Draught Flaps.
- Superior Illumination 10W Multi Option LED light (Warm, Cool, Daylight).
- Maximum ceiling height: 2.4 Mtrs.
- Cut Out Size (mm): Template supplied.
- Total ceiling cavity required: 365mm.
- Wall switch included.
- 5 year in home manufacturers warranty.
- 2 year manufacturers warranty on heat lamps.
- Made in Australia.
IXL 11303 Original
- 4 x 275W instant heat infra-red heat lamps.
- Powerful 200mm exhaust fan.
- Superior Illumination 6W Multi Option LED light (Warm, Cool, Daylight).
- Half heat function.
- Maximum Ceiling Height: 2.7 Mtrs.
- Cut Out Size (mm): 262 x 262.
- Total ceiling cavity required: 285mm.
- Wall switch included.
- 5 year in home manufacturers warranty.
- 2 year manufacturers warranty on heat lamps.
- Australian made.

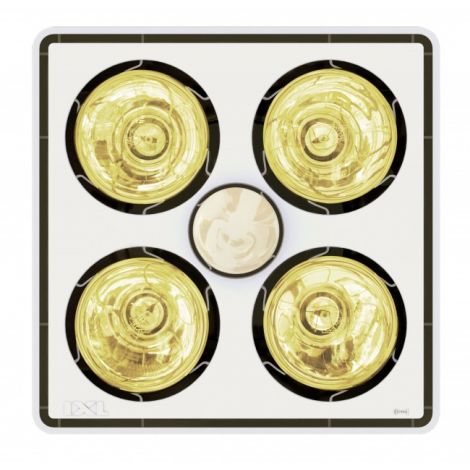

IXL 12310 Paramount
- 4 x 275W instant heat infra-red heat lamps.
- Powerful 200mm exhaust fan.
- Superior Illumination 10W Multi Option LED (Warm, Cool, Daylight).
- Half heat function.
- Maximum Ceiling Height: 2.7 Mtrs.
- Cut Out Size (mm): 330 x 330.
- Total ceiling cavity required: 295mm.
- Wall switch included.
- 5 year in home manufacturers warranty.
- 2 year manufacturers warranty on heat lamps.
- Australian made.
IXL 12309 Prime
- 4 x 275W instant heat infra-red heat lamps.
- Powerful 200mm exhaust fan.
- Superior Illumination 6W Multi Option LED light (Warm, Cool, Daylight).
- Half heat function.
- Maximum Ceiling Height: 2.7 Mtrs.
- Cut Out Size (mm): 262 x 262.
- Total ceiling cavity required: 285mm.
- Wall switch included.
- 5 year in home manufacturers warranty.
- 2 year manufacturers warranty on heat lamps.
- Australian made.

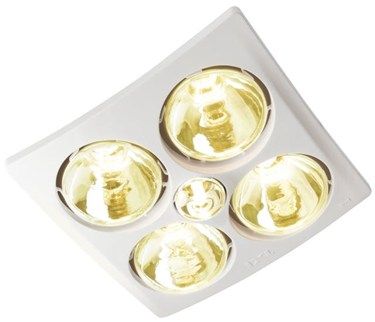

IXL 12343 Eco Sensation
- 4 x 275W instant heat infra-red heat lamps.
- Powerful 200mm exhaust fan.
- Includes Back Draught Flaps.
- Superior Illumination 12W LED.
- Half heat function.
- Maximum Ceiling Height: 2.7 Mtrs.
- Cut Out Size (mm): 330 x 330.
- Total ceiling cavity required: 310mm.
- Wall switch included.
- 5 year in home manufacturers warranty.
- 2 year manufacturers warranty on heat lamps.
- Australian made.
IXL 12301 Silhouette
- 4 x 375W instant heat infra-red heat lamps.
- Powerful 200mm exhaust fan.
- Superior illumination 12W LED.
- Half heat function.
- Maximum Ceiling Height: 3.3 Mtrs.
- Cut Out Size (mm): 330 x 330.
- Total ceiling cavity required: 295mm.
- Wall switch included.
- 5 year in home manufacturers warranty.
- 2 year manufacturers warranty on heat lamps.
- Australian made.

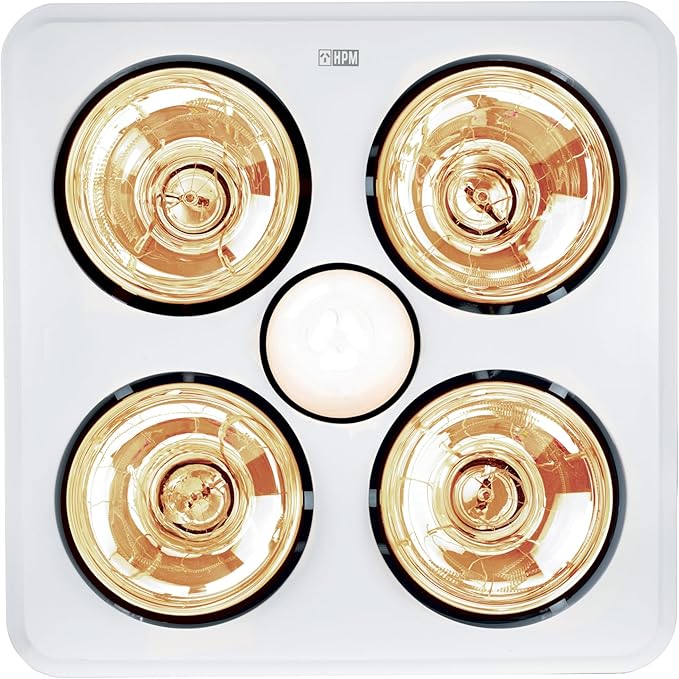

HPM BHD6224LWE
- Supply voltage: 230-240 V a.c. 50 Hz
- Maximum power rating: 1240 W
- Maximum power: 30 W
- Maximum airflow without duct: 189m³/h = 53 l/s
- Maximum airflow with duct: 135m³/h = 38 l/s (with 3m x 100mm duct)
- Ceiling cut-out: 300 mm x 300 mm
- Fascia size: 380 mm x 380 mm
- Protection class: Class I
- Draft stopper: Yes
- Duct size: 3 m x Ø 100 mm
- Projection into ceiling: 240 mm
- Required ceiling depth: 260 mm
- Protrusion from ceiling: 80 mm
- Face protrusion (excluding heat lamps): 40 mm
- Heat lamps: 4 x 275W Max E27 (L275HLES)
- Centre light: 1 x 7W LED R80 E27 (LR80014K)
- Sound pressure level at 3 m: 38 dBA (tested in accordance with AS 1217.5:1985)
- Inclusions: Legrand Excel Life 4 gang wall plate (ED770/4FLHHCWE), 3m x Ø100mm duct, external grille, duct tape, cable tie

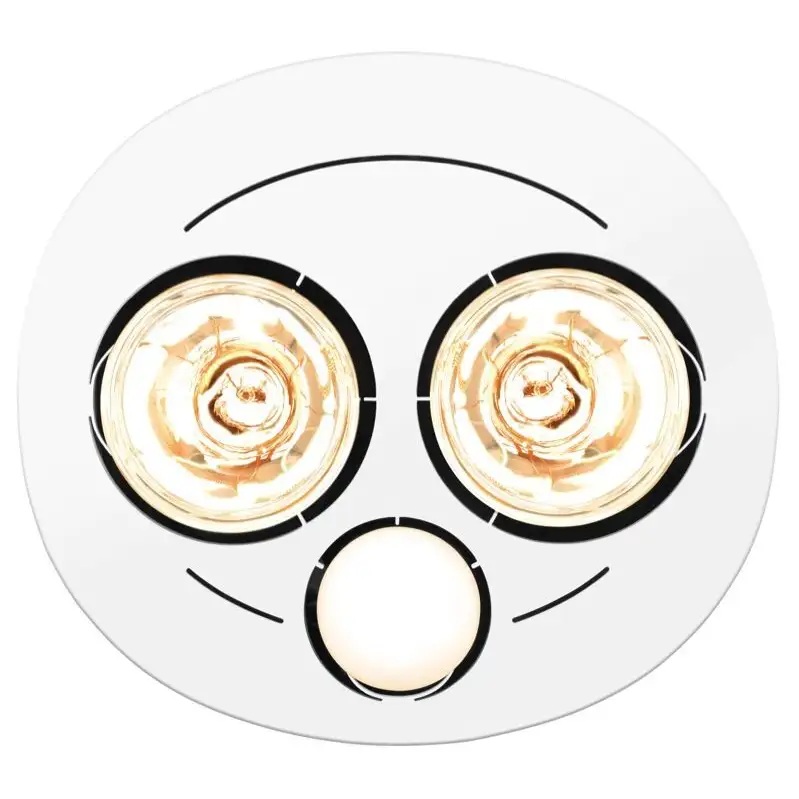

HPM BH2NDWE
- Motor rating: 40W
- Maximum power consumption: 690W
- Nominal voltage: 230-240V a.c. 50Hz
- Fan type: 240mm axial
- Centre light: R80, 7W, 600lm
- Heat lamps: 2 x 275W
- Airflow: 240m³/hr
- Cut-out size: 300mm
- Fascia protrusion (excl. globes): 20mm
- Switch included (Legrand Excel Life): 3 gang engraved HEAT, FAN, LIGHT
- Weight: 3.3kg
- Replacement LED centre light: LR80014K
Clipsal 6600 ADS-WE
- 2 x 275w Heat lamps
- Powerful 338 m3/h exhaust fan – 290 m3/h with back draft shutter fitted
- Minimum ceiling cavity 500mm
- Cut Out Size 325mm x 240mm Oblong Shape
- Sound Level at 3m 50dBa
- LED Centre globe
- Duct-able – Not Applicable
Installation Requirements
The main requirement when looking at the installation of a bathroom heater is to ensure there is sufficient space above your bathroom or toilet ceiling. The units generally protrude approximately 300mm into the ceiling space above your ceiling. Consideration also needs to be given to where the unit will be switched from and the ability to get extra wires to this location. If there is also an existing exhaust fan or lighting in the bathroom / toilet then please discuss this with our trained work co-ordinators to discuss the options available to you. The existing wiring in the property will also need to be compliant and up to standard.
To discuss the installation of a bathroom heater in your home simply give us a call on (08) 8274 0100
